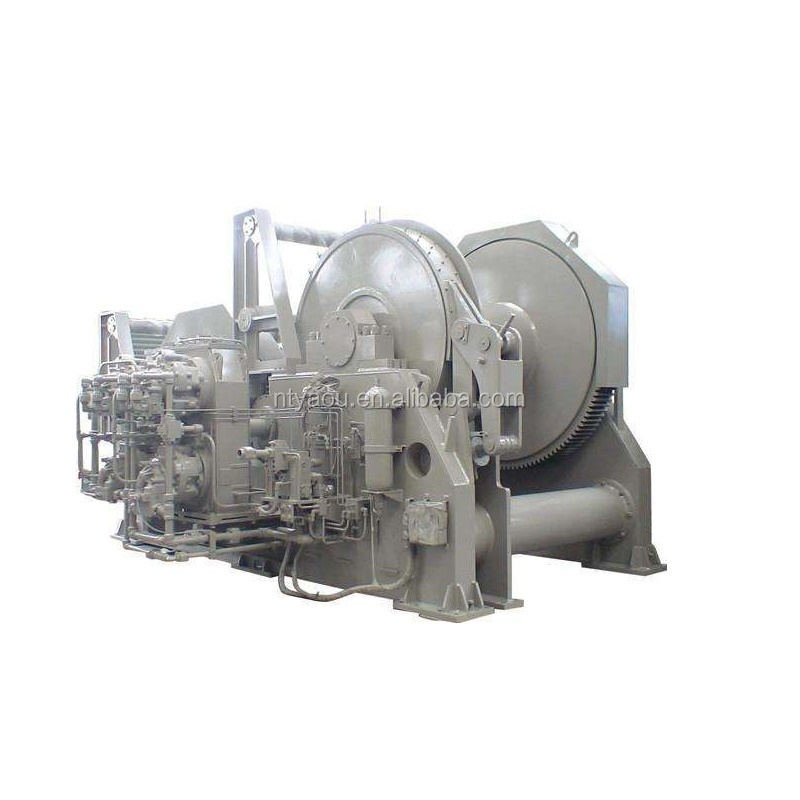

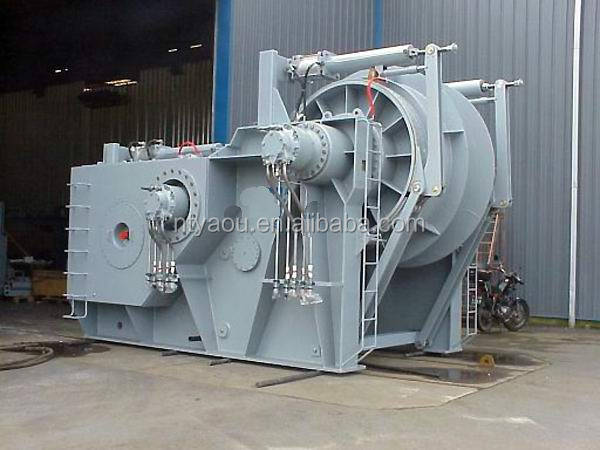

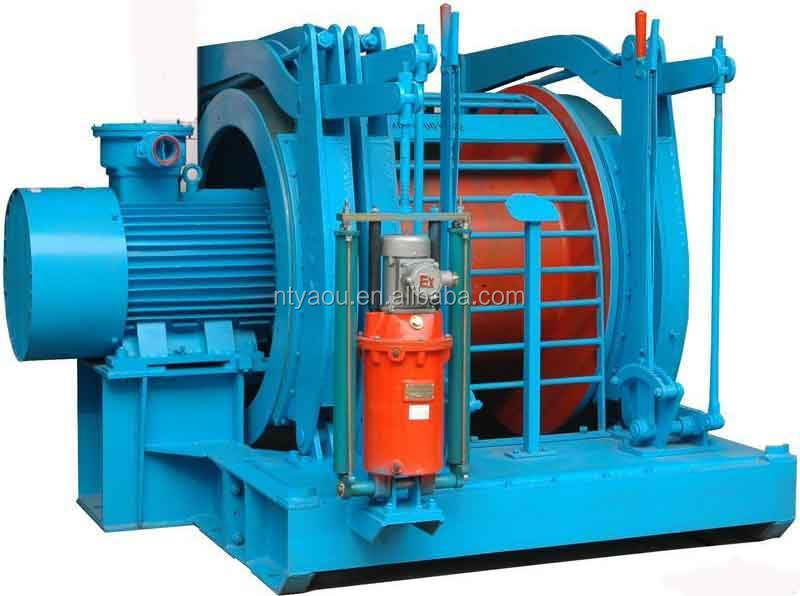

20ton double drum mooring winch, Boat winch

  • 20ton double drum mooring winch, Boat winch
  • 20ton double drum mooring winch, Boat winch
  • 20ton double drum mooring winch, Boat winch
  • 20ton double drum mooring winch, Boat winch

20ton double drum mooring winch, Boat winch

    Unit Price: 10000~15000 USD
    Min. Order: 1 Set/Sets
    Packaging: Standard export packing
    Productivity: 10
    Transportation: Ocean,Land,Air
    Place of Origin: CHINA
    Supply Ability: 10 Set/Sets per Month
    Certificate: CE
    HS Code: 8425399000
    Port: Shanghai China

Basic Info

Model No.: HWS-20

Product Description

Product Description
Detailed Product Description Can be designed to electric or hydraulic Winch,single drum or double drum,multiple drum according to customer's needs.
Electric mooring winch is widely used in the place with heavy work and big traction.the motor of the single drum winch drive the drum by reducer box,the brake is installed between the motor and input shaft. electric mooring winch could be set up to single drum, double drum and multiple drum for adapting the needs of hoisting, traction and rotary work. Normally,winch with the rated load less than 10ton could be set up to electric mooring winch.
Hydraulic mooring winch is the winch with the rated load from 10T~5000T, hydraulic motor have high mechancial efficiency and large torque, can drive different distributor as per different working conditions. this kind of winches have following features:compact structure,small size,light,nice appearance,safty,high efficiency,large torque,good stability,low noise,reliable operation and soon.
Specification
Series
Rated pull
(kn)
Rated speed
(m/min)
Drum capacity
(φmmxm)
Braking force
(kn)
Motor power
(kw)
Dimensions(mm)
Weight
(ton)
Length
Width
Height
HWS-20
20
12
15x200
60
11
1800
1150
1825
25
HWS-30
30
12
16x200
90
15
1950
1200
1900
3
HWS-50
50
12
22x220
150
22
2050
1200
2000
3.5
HWS-80
80
12
28x220
240
37
2175
1250
2100
4
HWS-100
100
12
30x220
300
45
2320
1285
2175
5
HWS-125
125
12
32x220
375
55
2385
1325
2250
5.5
HWS-150
150
12
36x220
450
75
2500
1465
2400
6
HWS-200
200
10
39.5x350
600
75
2600
1670
2625
9
HWS-250
250
10
43x450
750
90
2850
1800
2900
12.5
HWS-320
320
8
47x550
960
90
3050
1975
3100
18
HWS-400
400
8
52x600
1000
110
3375
2050
3400
22
HWS-500
500
9
56x600
7500
180

Packing & Delivery
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Company Profie
Rugao You Inport & Export Co. LTD was established in 2004, which was among the earliest trading companies strongly supported by Ministry of Foreign Trade and Economic Cooperation.
Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Our company mainly deals in hardware tools, combined tools, electric tools, special tools for petroleum, metal processing machinery and petroleum drilling equipment. Diagonal Cutting Plier,Oil Drill Pipes,Drilling Tools,Diesel Engine Etc.Our companyoperates hardware tools and has established long-term and stable cooperative relations with many retailers.

Main products:
1. Drill Pipe, Heavy Drill Pipe, Square & Hexagonal Kelly
2. Drill Collar & Non-magnetic Drill Collar
3. Stabilizers, Reamer, Hole Opener, Casing Scraper, etc
4. Kelly Valve, Safety valve, Check valve, and float valve
5. Hydraulic or Mechanical Drilling Jar, and Absorber
6. Fishing tools (Bowen serials), including overshot, spear, etc
7. Junk Mill, Casing Cutter, Safety Joint, etc
8. Hydraulic Bucking unit, Screw up and breakout Unit, Down hole motor tester, Jar tester, etc.
9 .Down hole motor
10. Processing machinery: shears, bending machines, hydraulic presses, bending machines, etc.
11. Various coal mine winches, oil field winches, ship winches, etc.
12. Various hand tools and electric tools.


Certifications
The company strictly controls the product quality, and all products have passed ISO \ API and other certifications.
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output,
Q2. What if I use this machine for the first time and know nothing of it ?
A2: We will have our engineers teach you how to operate it,you can just inform us some details of the product you need then we can customize as your special order.
Q3. How does your factory do regarding quality control?
A3: We has been regard quality as the priority. We always attach great importance to quality controlling from the very beginning to the very end ,so our press can match all the CE and ISO standard also more strict standard .
Q4. How about your delivery time?
A4: Generally, it will take 35 working days after receiving your deposit payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have standard machines in stock.
Q5. What is the warrantee period of the machine?
A5: We can supply 1 year warranty for our machines, We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. after-sales service
A6: 1. Installation:Free installation and commissioning, travel expense is on foreign customer.(Including round ticket and
accommodation cost)
2. Personnel training: Our engineers will give your employees free machine training when they come to your company to assemble the machines, and welcome to our factory to learn how to operate our machineQ1. How to get an accurate quotation?
